An Analysis The Distinction of Generator and Efficiency Gear Ratio PLTMH Vortex Turbine in Reservoir at Bujel Village
Abstract

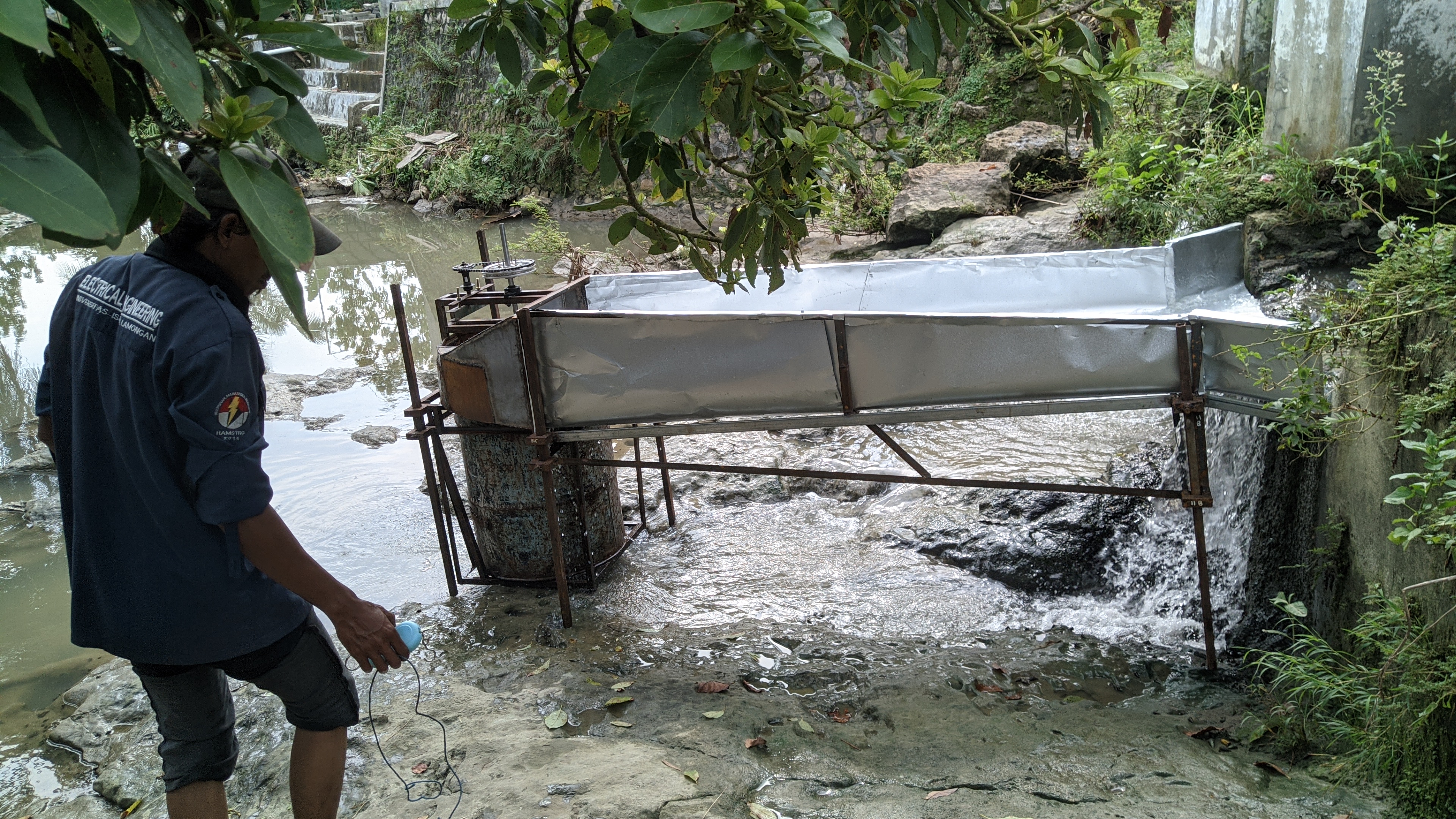

Energy requirements are needed by modern society in this digital era. Today the most widely used energy is fossil energy. It makes fossil energy can run out at any time. Therefore, alternative energy is needed, especially energy from nature. Indonesia has a lot of potential for the development of hydroelectric power plants. It happens because Indonesia has a tropical climate with very high rainfall and many of rivers with a fairly swift flow. The study done at Bujel village in Ngimbang Sub-District, Lamongan. DC generator is superior because the DC generator used is a low rpm generator, so by low rpm can have a higher voltage level of 25V, while AC generator has a maximum voltage of 11V. Based on the standard level of water turbine efficiency of 70%-90%, it means that the second generator can be said to be efficient because the load used is only a 50 Ω. The selection of gear ratios also affects the efficiency value of a water turbine because therefore in this study will examine the difference in gear ratios, namely 46:16, 46:18, 46:20. Considering the test results of the three gears, the gear with a ratio of 46:16 has a high rpm level of 468 rpm.
Keywords
PLTMH Analysis Vortex Turbin Ratio Gear Generator Efficiency
Full Text:
PDFReferences
A. Muliawan and A. Yani, “Analisis daya dan efisiensi turbin air kinetis akibat perubahan putaran runner,” Sainstek J. Sains dan Teknol., vol. 8, no. 1, pp. 1–9, 2017.
V. Rinanda and R. Permatasari, “Optimasi Desain Turbin Air Tipe Vortex Dengan 5 Variasi Jumlah Sudu Terhadap Efisiensi,” in PROSIDING SEMINAR NASIONAL CENDEKIAWAN, 2018, pp. 785–790.
M. F. R. Hakim and P. H. Adiwibowo, “Uji Eksperimental Kinerja Turbin Reaksi Aliran Vortex Tipe Sudu Berpenampang Lurus dengan Variasi Tinggi Sudu,” J. Tek. Mesin, vol. 6, no. 1, 2018.
A. Al Farisi, Y. Handoyo, and T. Rokhman, “Analisis Variasi Jumlah Sudu Turbin Berpenampang Pelat Datar pada Turbin Air Aliran Vortex dengan Tipe Saluran Masuk Involute,” J. Ilm. Tek. Mesin, vol. 7, no. 2, pp. 72–78, 2019.
M. Q. A. Santoso, “Analisis Perbedaan Generator Dan Effisiensi Gear Ratio PLTMH Vortex Turbine Di Waduk Desa Bujel,” J. JEETech, vol. 3, no. 1, pp. 52–56, 2022.
T. A. Pambudi, G. E. Pramono, and D. Yuliaji, “Analisa Sistem Roda Gigi Diferensial Penggerak Roda Belakang Kendaraan Mobil Listrik (IKSA),” ALMIKANIKA, vol. 1, no. 1, 2019.
R. P. Putra, S. Samsurizal, and N. G. Pahiyanti, “Desain Sistem Kontrol Penggerak Mula Generator Magnet Permanen PLTMH Menggunakan Planetery Gear,” Kilat, vol. 7, no. 2, pp. 149–159, 2018.
S. S. Murni and A. Suryanto, “Analisis Efisiensi Daya Pembangkit Listrik Tenaga Mikrohidro Menggunakan HOMER (Studi Kasus PLTMH Parakandowo Kabupaten Pekalongan),” J. List. Instrumentasi, dan Elektron. Terap., vol. 1, no. 2, 2021.
I. P. Juliana, A. I. Weking, and L. Jasa, “Pengaruh Sudut Kemiringan Head Turbin Ulir dan Daya Putar Turbin Ulir dan Daya Output Pada Pembangkit Listrik Tenaga Mikro Hidro,” Maj. Ilm. Teknol. Elektro, vol. 17, no. 3, 2018.
D. L. Sihaloho, “Rancang Bangun Alat Uji Model Sistem Pembangkit Listrik Tenaga Mikro Hidro (PLTMH) Menggunakan Turbin Aliran Silang,” 2017.
DOI: https://doi.org/10.26905/jeemecs.v6i2.8269
